Selective Targeted Commercial / Institutional / Industrial Active
Air Purification System
-- Name your airborne contaminate. We have a solution for that.
|
The Active
Air Commercial/Institutional/Industrial
Selective Targeted Purification System
is ideally applicable to restaurant kitchens with
heavy fat, oil, and grease particulate environments
or the hazy cutting oil environment of a machine shop.
The Active
Air Commercial/Institutional/Industrial Selective
Targeted Purification System substantially
reduces odors and visible smoke in the air and microbial populations on
surfaces by utilizing the patent pending Active Air Purification
technology
which
consists
of special high output UV lights and a photocatalyst target,
creating an Advanced Oxidation Process containing several friendly
oxidizers, combined with absorbers, designed for specific airborne
contaminates – thereby, effectively reducing fats, oils, and
grease particulate, radon, mercury, and ultra fine particulate
from the breathing space.
|
Full-featured
system --
•
Heavy duty air system utilizing Active Air Purification technology and
combinations of situation specific absorbers
•

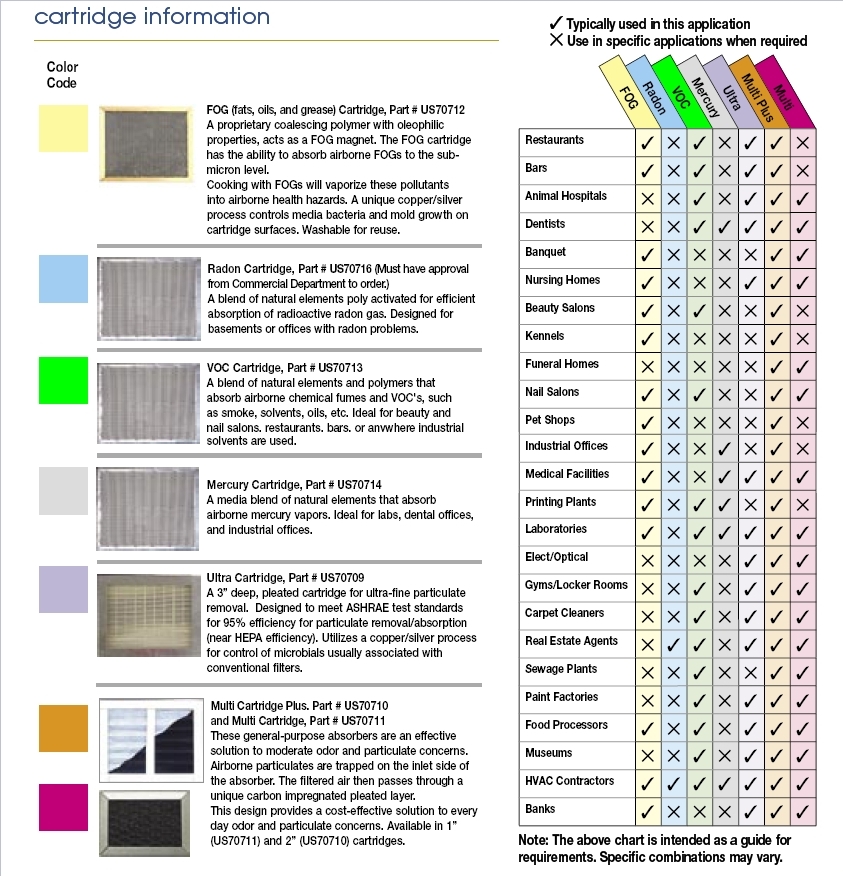

Multiple situation absorber cartridges
•
Low ozone output
•
Plugs into standard 120 volt outlet
|
Ideally suited for --
•
Restaurant kitchens – especially deep fryers and grills
• Machine shops with a haze from
utilizing machine
tool cutting oils
• Nursing home rooms
• Dental Offices, Labs, and
Industrial Offices with
mercury vapors
• Print shops with heavy ink
particulates
|
Installation features
•
Mounts on the wall – see details below.
•
Plugs into a 120 volt electrical outlet.
•
Unit can also be hard-wired.

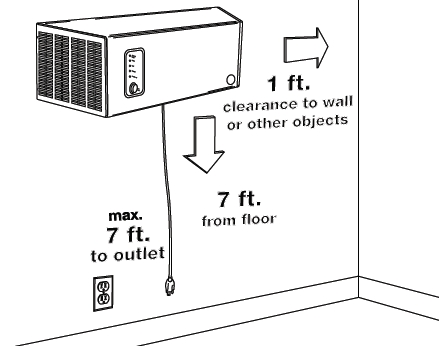

Recommended
Positioning
•
The Selective Targeted Commercial/Institutional/Industrial Active
Air
Purification System
unit should be installed within 7 feet of a standard 120 volt outlet to
accommodate the power cord. The unit may be hard-wired for
installation, which should be done only by a licensed Electrical
Contractor.
•
The Active
Air Commercial / Institutional / Industrial Selective Targeted
Purification System
unit should be secured into wall studs if possible. Mounting holes are
on 16 inch centers to accommodate installation to be secured into wall
studs.
•
Fasteners are recommended to be at least 2 1/2 inches in length,
minimum size, #10 screws. Use appropriate fasteners when mounting to
masonry or other substrate. |
| Active
Air Commercial/Institutional/Industrial
Selective Targeted Purification System
-- Spec Sheet |
| Description |
Applications |
- Heavy duty air system utilizing
RCI
Active Air Purification technology and combinations of situation
specific absorbers.
- Multiple situation absorber
cartridges.
- Low ozone output.
- Plugs into standard 110 VAC outlet.
|
- Heavy fat, oil, and grease
(F.O.G.) particulates.
- Kitchens with deep fryers and
grills.
- Machine shop airborne cutting oils.
- Industrial solvent handling rooms.
- Dental office mercury reduction.
|
| Technology |
The Active
Air Commercial/Institutional/Industrial
Selective Targeted Purification System
substantially reduces odors and visible smoke in the air and microbial
populations on surfaces* by
utilizing the patent-pending RCITM
(Radiant Catalytic IonizationTM) ActivPureTM
technology. RCITM
ActivPureTM
technology consists of special high output UV lights and a
photocatalyst target, creating an Advanced Oxidation Process containing
several friendly oxidizers, combined with absorbers designed for
specific airborne contaminates -- thereby effectively reducing fats,
oils, and grease particulate, radon, mercury, and ultra fine
particulate from the breathing space.
| *Scientific tests
have demonstrated the use of Active Air Purification air purifiers
generating RCI (Radiant
Catalytic Ionization) substantially
reduce microbial populations on surfaces -- including, but
not limited to Escherichia coli, Listeria noncytogenes, Streptococcus
spp., Pseudonomas aeruginosa, Bacillus spp., Staphylococcus aureus,
Candida albicans, and S. chartarum. At this point, product
testing does not make a similar demonstration with respect to airborne
microbials. These statements have not been evaluated by the
FDA. These products are not intended to diagnose, treat,
cure, or prevent any disease. |
|
| Active
Air Commercial/Institutional/Industrial
Selective Targeted Purification System
-- Specifications |
| Electrical |
120
VAC, .5 amp., 60 Hz, 220 VAC |
400
- 600 watts |
| Mechanical |
52
CFM free air delivery fan |
1

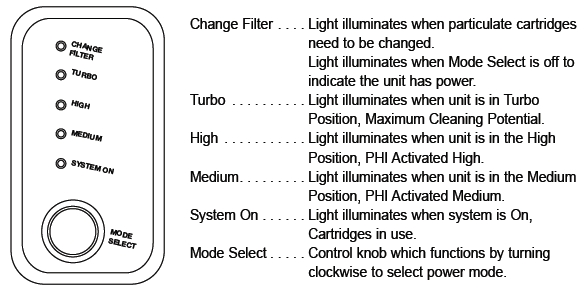

front-mounted control for RCITM ActivPure output |
| Dimiensions |
13"
H x 37" W x 13" D |
33cm
H x 94 cm W x 33 cm D |
| Weight |
50
pounds |
23
kilograms |
Along
with the Active
Air Purification
technology,
specific targeting allows
the user to expressly select
the contaminates desired to be removed.
Click
on the images below for full-sized viewing.
