| Inline
Active Air Purification HVAC Probes |
-- The start of total building protection, the help
your duct works need --
A Great Start and Compliment to a Whole Building
Solution
Start
where the problem starts --
the "lungs" which enable your building to "breathe".
Regardless
of the size or scope of the overall facility, any part of the overall
air space, however connected, can
and will affect the quality of the whole.
Consequently,
the first place to start is sanitizing and purifying the system
responsible for moving air from point "A" to point "B" and all the way
to point "Z" -- the air handlers.
By
strategically placing the proper number and sizes of the Active Air
Purification Inline HVAC Probes, every
section of the building is being corrected and balanced to function as
part of the whole complex's Indoor Air Quality system -- so that
everywhere you go, there is a baseline of air purity and
safety. |
 |
The
HVAC system is to an occupied
building what the lungs are to a body.
 |
|
But in order for the air to
travel
throughout the "body" of a structure, the ducting functions similar to
your own bronchial system. If the system gets clogged or
infected, the structure can literally get "sick".

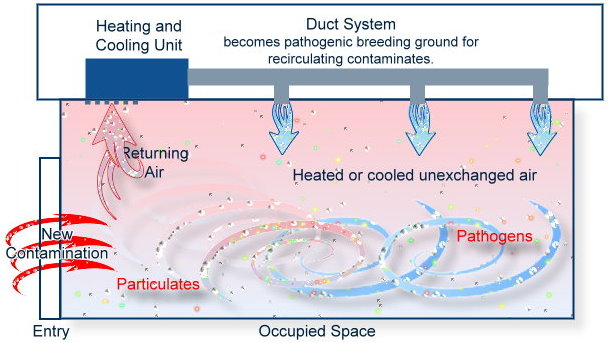

Air
ducts in unpurified recirculating
mode.
|
    |
Without a PRO-ACTIVE Environmental
intervention, HVAC systems, while moving the air, will also capture and
harbor all manner of particulates,
spores,
and pathogens
which will accumulate, breed, and be redistributed throughout the
entire indoor air space. The longer the process continues,
the
more concentrated will be this collection and the sicker will become
the air space and the people who try to breathe there. |
The
appropriately sized and placed Active
Air Purification Inline HVAC Probe fixes that. Installed in
the
plenum above the coils of each A/C unit, each module is an indexed device
which utilizes the output
produced when a germicidal broad spectrum high-intensity UVX lamp
is reflected off of a specially engineered matrix with a patent-pending
proprietary multi-metallic coating of rare and noble medals.
Unlike
what many have seen in the
past, this is NOT a UV bulb whose effectiveness is limited to the few
square feet it shines upon. To the contrary, this most
amazing
blend of "molecules on a mission" disburses throughout the duct work
system and out in and over the entire breathing space seeking out
undesireable airborne and surface laden undesireables. When
the
unwanted particles, odors, and pathogens are found, they are
immediately oxidized and rendered neutralized.

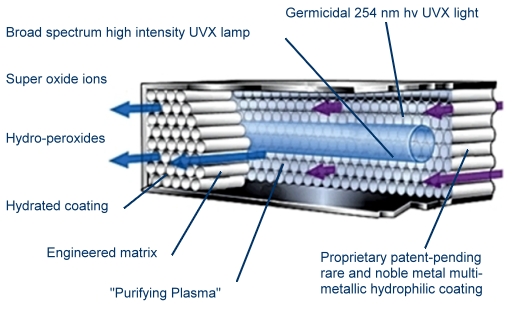

How does it happen? As air passes through the honeycombed
patent-pending matrix
surrounding the UV lamp source, oxygen molecules are stripped out of
the relative humidity in the air which then recombine with other
molecules in a plasma of powerful but "friendly" oxidizers*. The
proprietary process which produces this amazingly
efficient blend
of germ killers and air sanitizers is referred to often as "Radiant
Catalytic
Ionization" (or "RCI" for short), and it
mimics the way our air was designed to be purified in nature. RCI
literally brings the outside inside. Simply put, for indoor air
quality, there is no other product line that does the job better on
planet Earth.
Available in single and
dual probe configurations at 9" and 14" and both 110v
and 220v power settings for installation singly or in multiples as the
size and complexity of the ductworking labyrinth requires.
|
 |
 |
 |

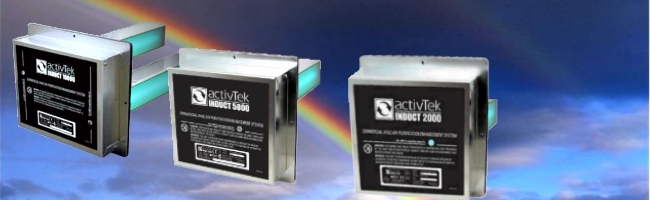

Inline
Active
Air Purification HVAC
2000
Probe
- 110 or 220VAC single 9" probe
for typical 2,000 SF coverage |
Inline
Active
Air Purification HVAC
5000 Probe - 110 or 220 VAC single 14" probe
for
typical 5,000 SF coverage |
Inline
Active
Air Purification HVAC

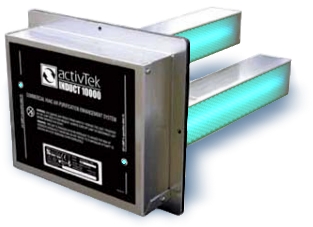

10000 Probe - 110 or 220 VAC dual 14" probe
for
typical 10,000 SF coverage |
Sized
for small to large HVAC
systems (multiples can be used anywhere along the ducting feeder trunks
as volumes necessitate), this patented
catalytic
converter literally produces an oxidizing plasma which
circulates, purifies, and sanitizes the interiors of the duct work
system to prevent the buildup and proliferation of unwanted pathogens,
molds, and fungi therein. (Also see the Mini Inline Active Air Purification HVAC probe
for wall units and standalone HVAC systems.)
The oxidizing plasma then moves out
and circulates into the rest of the indoor air space to augment the
other air purifying components. |
| The number and placement of
each individual Inline Active Air Purification HVAC Probe is determined
by factoring in the size and tonnage of the A/C system, the distance
the forced air has to travel before being expelled into occupied
spaces, the number of branches and degrees of turns getting to the
outlets, registers, and the overall volume of air passing through the
immediate vicinity of the Inline Active Air Purification HVAC Probe. |
 |
Efficiencies of the Inline
Active Air Purification HVAC Probe system will be greatly enhanced by
the use of VariFlowTM controllers being placed on the air circulation
fans which allow for low speed, low noise circulation of the RCI
actively treated air, even while the blower system is essentially
turned off. |
|
This assures that the oxidizing plasmas are being sent where they need
to be even when the cooled or heated forced air is not.
|
| Active Air Purification Inline
HVAC Probe Specifications |
Electrical
Inline 2000
Probe
Inline 5000 Probe
Inline 10000 Probe |
120/220 VAC, 50/60 Hz
120/220
VAC, 50/60 Hz
120/220
VAC, 50/60 Hz
|
12 watts
20
watts
20
watts
|
Mechanical
Inline 2000 Probe
Inline 5000 Probe
Inline 10000 Probe |
UV bulb monitoring system install
UV
bulb monitoring system install
UV
bulb monitoring system install |
safety interlock switch installed
safety
interlock switch installed
safety
interlock switch installed |
Dimensions
Inline 2000 Probe
Inline 5000 Probe
Inline 10000 Probe
|
6" H x 6" W x 11.25" D
9"
H x 9" W x 17.00" D
9"
H x 9" W x 17.00" D |
15 cm H x 15 cm W x 28.5 cm D
23
cm H x 23 cm W x 43.0 cm D
23
cm H x 23 cm W x 43.0 cm D |
Weight
Inline 2000 Probe
Inline 5000 Probe
Inline 10000 Probe |
3 pounds
4 pounds
4 pounds |
1.4 kilograms
1.8
kilograms
1.8
kilograms |
Coverage / Ozone Output
Inline 2000 Probe
Inline 5000 Probe
Inline 10000 Probe |
Up to 2 - 3000 SF of AC'd space
Up to 5000 SF of AC'd space
Up to 10000 SF of AC'd space |
|
Max Temp
Inline 2000 Probe
Inline 5000 Probe
Inline 10000 Probe |
o
200o F
200o F
200o F |
|
