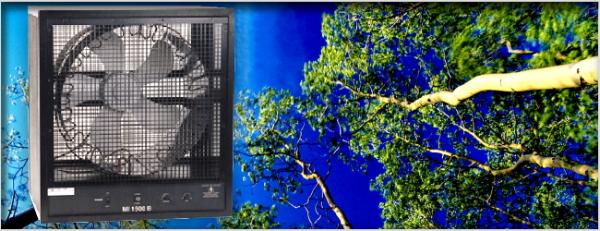

High Volume Industrial Active Air Purification Ionizer

Direct the power of a strong breeze flowing through multiple billions
of pine needles in a mountain forest.
Or harness the atmospheric effects of a mountain waterfall.

That is what the Active Air Purification High Volume Industrial Ionizer
does on the INSIDE of your industrial application.

 The Active Air Purification High Volume Industrial Ionizer is ideally applicable
for removal of heavy visible smoke
and severe industrial particulates -- in areas up to 5000 SF*!

*See specifications below

Applications abound for this high production ionizer.*   Wherever there are large spaces and heavy contributions of dust or dirt -- from dirt floors, or sanding, sawing, filing, grinding, painting overspray, crowd traffic, etc. -- smoke, cutting oil haze, or most any other type of particulates, the Active Air Purification High Volume Industrial Ionizer goes to work causing the unwanted material in the air to clump together and drop below the breathing area of the environs . . . "so we can all breathe a little easier." SM

Active Air Purification High Volume Industrial Ionizer - Spec Sheet
Description	Applications

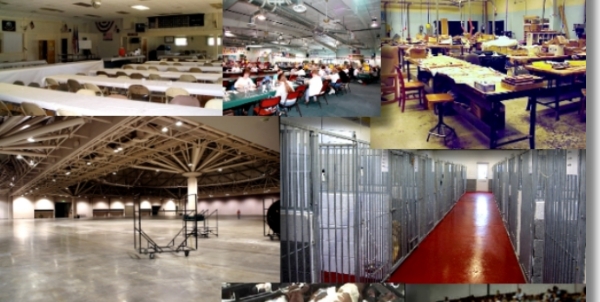

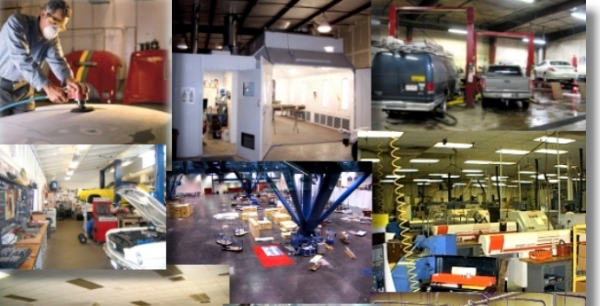

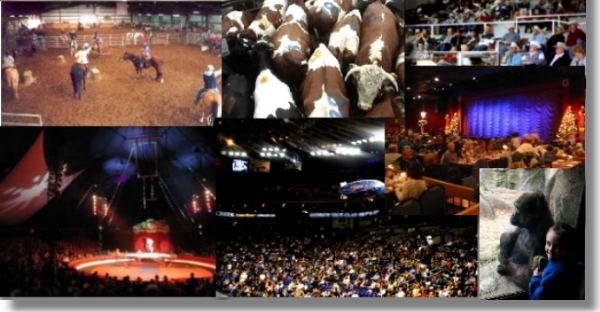

Mass ion generation and dispersion Creates both negative and positive ions Ratio of positive to negative ions fully and easily adjustable Billions of ions generated by needles mounted around the perimeter of the fan's cowling Effective coverage up to 2000 SF in heavy pollution or up to 5000 SF in light to mild pollution.	Heavy duty ionizer of industrial, commercial, and agricultural settings Civic clubs Bingo halls Horse and rodeo arenas Horse and cattle auctions Automotive body shops and garages Woodworking shops Post offices (heavy paper dust) Convention Centers Dinner Theaters
Technology
The Active Air Purification High Volume Industrial Ionizer effectively removes heavy concentrations of particulates and visible smoke using ion generation. Opposite charged particles agglomerate (flocculate) together by electrical attaction to each other and become large enough to be captured by filters. Or they simply become so heavy that they precipatate out of the air and drop out of breathing space.

Active Air Purification High Volume Industrial Ionizer - Specifications
Electrical	120 VAC, 2.0 amps, 60 Hz 26 kv DC ion generator	220 watts power concumption
Mechanical	300 CFM adjustable free air fan
Dimensions	28" H x 26" W x 18" D	71 cm H x 66 cm x 46 cm D
Weight	70 pounds	32 kilograms
Coverage / Ozone Output	2000 SF w/ heavy pollution 5000 SF w/ light to mild pollution	n/a

*Ionization. Ions are molecules which carry a charge of electricity. Ions are found in the natural outdoors at typical levels of 3000 positive and 4000 negative ions per cubic centimeter. Indoors, there are very few negative ions and the balance is mostly positive ions. By adding negative ions to an environment, the airborne particles will take on this electronic charge and be attracted to oppositely charged particles which will become heavy enough to be settled to the ground by gravity... or... the charged particle will be attracted to grounded objects. Either way the particles are now out of our breathing space. DC Ion generation takes place at the unit. The ions are emitted directly from the needle point itself and the ions produced are totally dependent upon air movement. Many more ions are being generated but they must come in contact with the particulate. DC ion generation is used for extremely polluted particulate problems and effectiveness varies from application to application. Variables such as air movement, amount of particulate, building construction, amount of grounded objects present, and placement will change effectiveness.

Square Foot Area	DC Ion Control set for Full Positive [ Total # of Ions/cm3 ]	Ion Control set for 50% positive and 50% negative	DC Ion Control set for Full Negative [ Total # of ions/cm3 ]	Radio Frequency Ionization Ratio of (-) to (+)
50	10,842,823	5,421,462	10,842,923	4,000 (-) / 3,000 (+)
100	5,421,462	2,710,731	5,421,462	4,000 (-) / 3,000 (+)
200	2,710,731	1,355,365	2,710,731	4,000 (-) / 3,000 (+)
400	1,355,365	677,683	1,355,365	4,000 (-) / 3,000 (+)
800	677,683	338,841	677,683	4,000 (-) / 3,000 (+)
1600	338,841	169,421	338,841	4,000 (-) / 3,000 (+)
2400	169,421	84,710	169,421	4,000 (-) / 3,000 (+)
4800	84,710	42,355	84,710	unspecified
9600	42,335	21,178	42,355
19200	21,177	10,589	21,177
38400	10,589	5,294	10,588
To figure the Ion count levels for the Active Air Purification High Volume Industrial Ionizer, please take the above figures for the DC ion settings and multiply by 150.
